Impresora LED UV híbrida

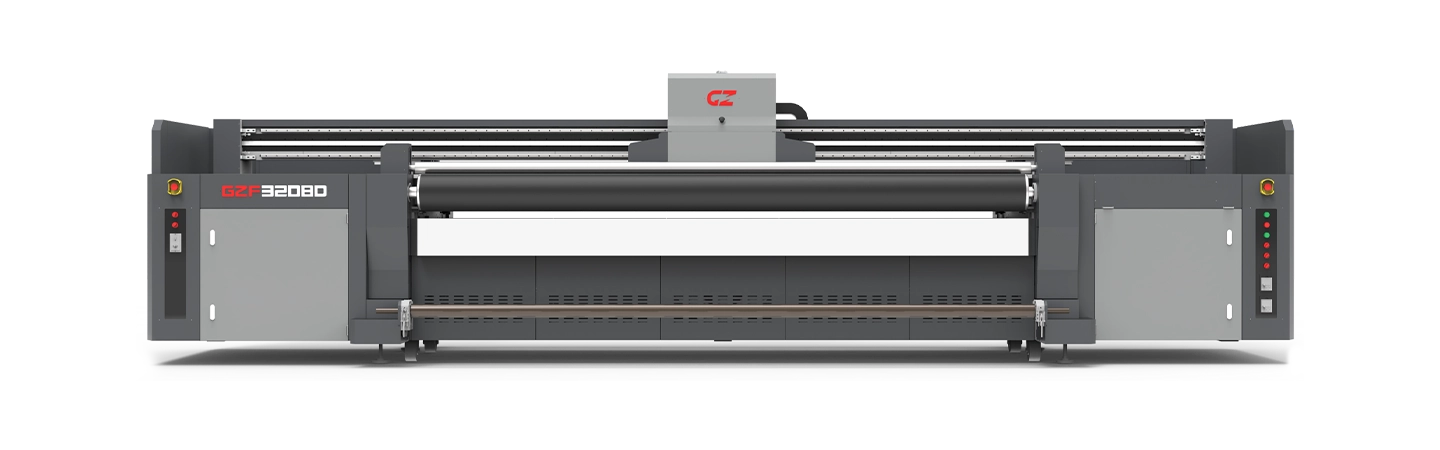

La impresora doble ancho 320 UV-LED Híbrida GZF3208D esta especialmente diseñada para la impresión de materiales rígidos y rollo a rollo sus formas con hasta 10cm de espesor. Con tintas de curado UV de alta durabilidad y bajo costo y un sistema de impresión de 4 colores CMYK + BLANCO + Barniz de acabado sectorizado o total en varias capas , cuádruple zonas de vacío independientes para aumentar productividad, permitiendo una impresión continua de un origen mientras el otro es preparado. Lámparas UV-LED de mínimo consumo y mayor durabilidad.brinda un curado simple y eficiente Este modelo acompaña a nuestros clientes en su crecimiento ya que permite incorporar de 3 a 8 cabezales y adecuarlos a una mayor producción. Alta definición y producción para placas/rígidos y rollos.
Ventajas del motor de levitación magnética
FOTOS
CARACTERÍSTICAS

CABEZAL INDUSTRIAL RICOH G5/G6 DOBLE PRESIÓN NEGATIVA
Cabezales RICOH G5/G6 con doble presion negativa que previene bloqueos y asegura provision de tinta en impresion a alta velocidad.
Especificaciones Técnicas
Modelo: GZF3208D
Print Head: 4-8 Ricoh Gen5 printheads
Variable drop Size: 0- 21 picolitre
Resolution: 600x 900- 600×1800 dpi
Curing Sistem: dual water cooling LED UV curing lamps
Ink: UV curable ink
Color configuration: 2xCMYK 2xCMYK+2xWW 3xCMYK+2xWW
Ink supply system: Negative Pressure System (White ink stirring and circualation system)
Ink tank: 2500ml
Media thickness: Max 100 mm
Media Type: Flexible Media: Ceiling Film, Vinyl,Frontlit, Backlit,Banner, Fabric, Wall paper, Leather,etc. Rigid media:PVC board,Foam board,Corrugated Paper, Aluminum sheet,Wood,Acrylic,etc
Printing Width: Max, 3200 mm
Printing speed RICOH G5 : Draft= 4 pass, 1xCMYK-36.2m2h 2xCMYK-64.8m²/h, 3xCMYK-87.5m²/h – Production= 6 pass, 1xCMYK-24.8m2h, 2xCMYK-45.8m²/h, 3xCMYK-63.5m²/h – Hi-resolution= 8 pass, 1xCMYK-11.9m2h, 2xCMYK-22.9m²/h, 3xCMYK-32.9m²/h – Photo= 12 pass, 1xCMYK- 8.2m2h, 2xCMYK-16m²/h, 3xCMYK-22.8m²/h
Printing speed RICOH G6 : Draft= 4 pass, 1xCMYK-38.6m2h 2xCMYK-69m²/h, 3xCMYK-92.8m²/h – Production= 6 pass, 1xCMYK-22.6m2h, 2xCMYK-48.9m²/h, 3xCMYK-67.6m²/h – Hi-resolution= 8 pass, 1xCMYK-12.7m2h, 2xCMYK-24.6m²/h, 3xCMYK-35.3m²/h – Photo= 12 pass, 1xCMYK- 8.7m2h, 2xCMYK-17.1m²/h, 3xCMYK-24.5m²/h
Data Interface: External= USB 3.0; Internal: Fiber Optical
Working Environment: Temp. 20°C ~ 30°C, Humidity 35% ~ 65%
Software: PhotoPRINT IV 12 + GZ control console
Power: Single-phase, 50/60 Hz, AC220V+ 10% ,10A (Printer+UV controler)
Installed/Package Size: LxWxH (mm)= 5450x1440x1550 / 5600x2100x1990
G.W./N.W.: 1345kgs / 1115kgs
