Mesas de Corte y Fresado
El complemento ideal de su equipo UV

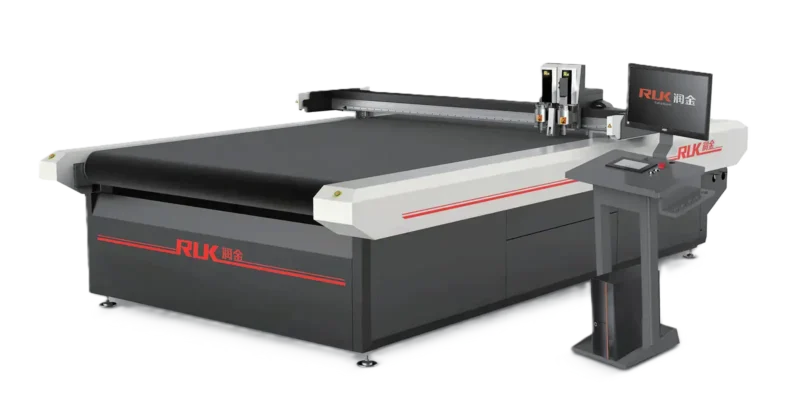

RUK MTC09
Si se dedica a la rotulación, packaging y fabricacion de exhibidores, este equipo de acabado digital y corte se ha transformado en el complemento ideal de su equipo UV. Fácil de operar posee una cama con cinta para corte de rollos, vinilos, lonas, telas , placas , madera , acrílicos y otros materiales rígidos aceptados por sus diferentes herramientas . Equipada con fresadora incorporada y componentes críticos de alta calidad , camara de video posicionamiento de origen Aleman, Cinta italiana y motores Japoneses , permite al usuario trabajar de manera confiable y libre de problemas.
Aplicaciones
![]() | ![]() | ![]() | ![]() |

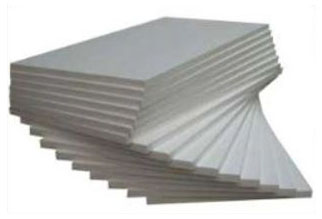

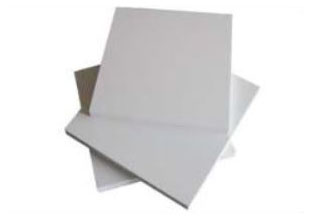

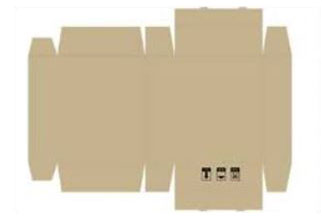

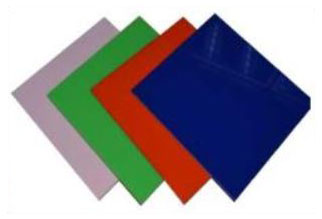

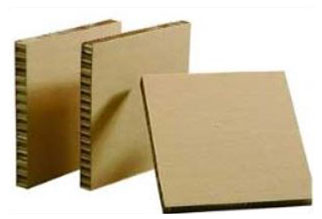

Corrugated paper | Honeycomb paper | Foam board | Acrylic board |
![]() | ![]() | ![]() | ![]() |

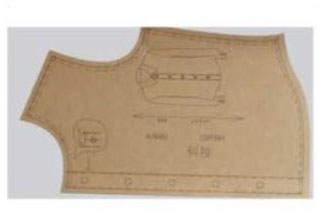

Vinyl sticker | PVC board | Apparel | Auto-interior |
Herramientas
![]() | ![]() | ![]() | ![]() | ![]() | ![]() |

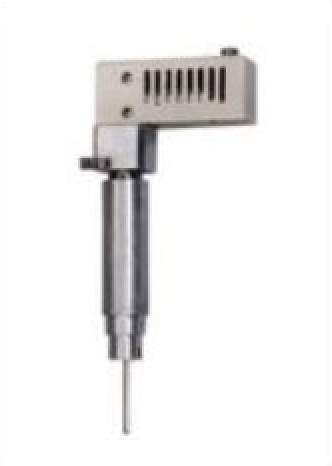

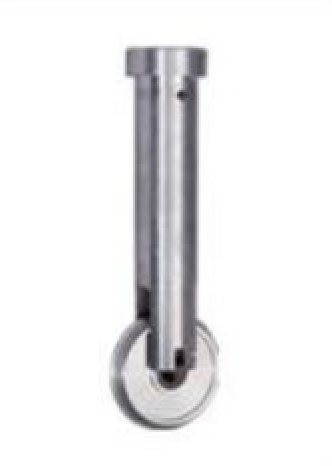

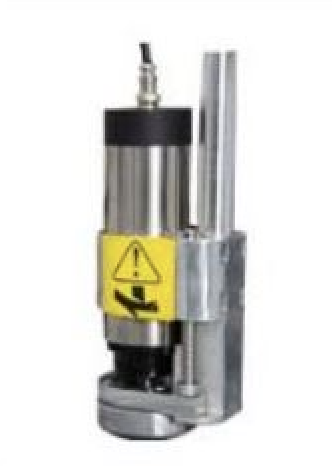

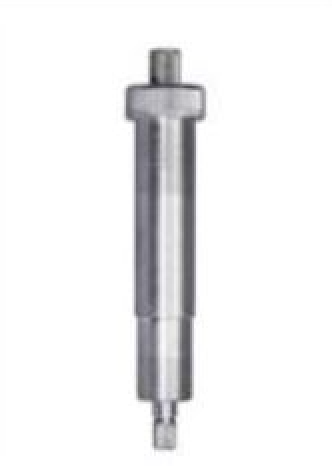

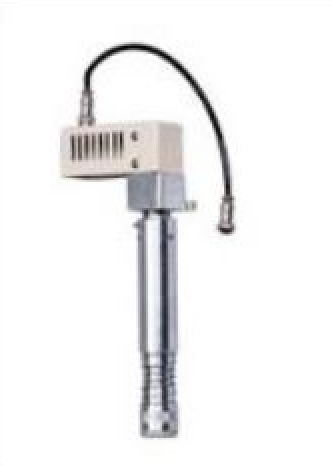

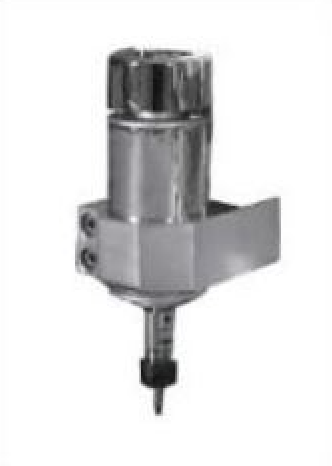

Oscillating tool | Kiss cut | Foam cut | Creasting wheel | Router cut | Normal cut |
Especificaciones Técnicas
Modelo: RJMTC09-2513 | RJMTC09-2516
Effective Cutting Area (mm): 2500mm#1300 | 2500mm#1600mm (as customer request)
Multi-function Head: Multi-station head, can be freely replaced with different tool head,with with routing, Vibration cutting, half-cutting-Creasing line,drawing, CCD industrial camera´s positioning and driving rotary tool cutting
Operation Properties: Work with computer synchronously for quick data transmission,multi-page file in one time
Cutting Speed: 300-1600mm/s (Depend on different materials)
Cutting Thickness: ≤50MM (Depend on different materials)
Cutting Materials: All kinds of pictorial cloth,mesh cloth,flags,back glue, car stickers,PP synthetic paper,corrugated cardboard, red cardboard,PVC, honeycomb board, PVC foam board,acrylic,KT board,aluminum-plastic plate,fiber board and rubber sheet,thick,knitted fabric,woven fabric
Standard Tools: Pen,Cursor,Oscillating tool,Kiss cut tool,Universal cutting tool,CCD automatic positioning system
Option: High speed water-cooled milling tool,v-cut (45° , 30° , 22.5° , 15.0° for option),Foam cut tool,Creasing wheel
Fixing Method: vacuum System
Feedgind Method: Automatic feeding mode of imported crawier (unlimited length cutting)
Repeat Precision: ≤0.01mm
Software Resolution: 0.025
Interface: Ethernet port
Buffer Memory: fast transmission for multi-page large file
Command Mode: HPGL compatible format
Format Compatible: AI, Auto CAD,CDR ,etc
Control Panel: 7 inch color touch screen
Driving System: Imported servo motor, high precision linear guide, precision ball screw
Safety Device: Adopt infrared sensor, safe and reliable
Voltaje / Power: AC 220V /380V +-10% 50HZ
Pump Power: 7.5KW
Total Fixed Power: 9.5 KW
Working Environment: Temp: 0°C – 35°C Humidity: 35% – 80%
